Scales

Health o meter Professional Scales

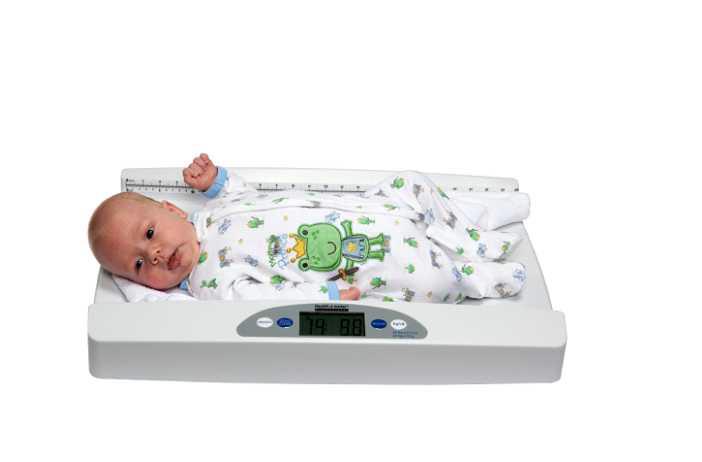

Digital Pediatric Tray Scale

High performance digital pediatric scale with motion-sensing

technology to capture the weights of even the most active

babies. Easy-to-read 1” LCD display. Large, stable weighing

tray with raised edges for baby’s comfort and safety, tray size:

24 7/8” (w) x 13” (d) x 1 3/8” (h). Weighs in kilograms and

pounds/ounces. EMR Connectivity via USB, LB/KG Conversion,

Zero Out/Tare, Hold/Release, Auto Zero and Auto Off. Built-in

measuring tape (0” - 24” x 0cm - 58cm). Powered by 6 AA

batteries (included) or AC adapter (not included). Capacity: 44

lb x 0.5 oz / 20 kg x 0.01 kg. 2 year limited warranty. White.

ItemNo Line Item Description

553KL Digital Pediatric Scale

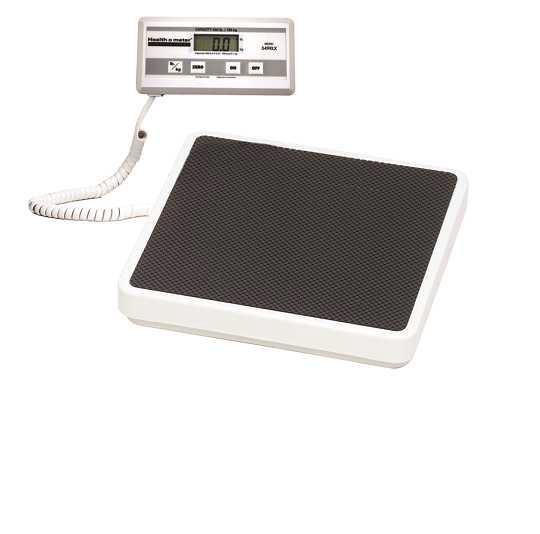

Digital Remote Display Scale

Two-piece digital scale with remote

LCD display and 12 1/2” (w) x 12”

(d) x 1 7/8” (h) platform. Its 9’ cord

allows easy, convenient positioning

of the display on the wall or on a

table with included table-top

bracket. Features EMR Connectivity

via Serial Port, LB / KG Conversion,

LB /KG Lock Out, Zero Out / Tare,

Auto Zero, Auto Off. One 9V

battery (incl), AC adapter optional.

Capacity: 400 lb x 0.2 lb / 180 kg x

0.1 kg. 2 year limited warranty.

White.

ItemNo Line Item Description

349KLX Digital Remote Display Scale

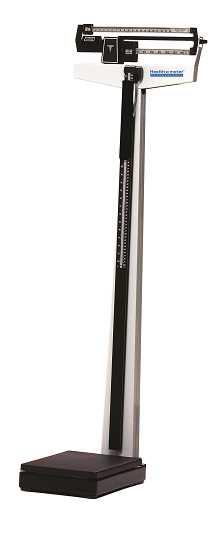

Physician Balance Beam Scales

Maximum strength, unitized steel base and lever

system with easy-to-read poise bars. Factory

calibrated to ensure accuracy. Powder coated, non-

rust inside and out for extended life. Capacity: 390

lb / 180 kg. Platform size: 10 ½” (w) x 14” (d) x 3 ¼”

(h). 10 year limited warranty.

ItemNo Line Item Description

400KL Without height rod

402KL With height rod

402LB Pounds only, with height rod

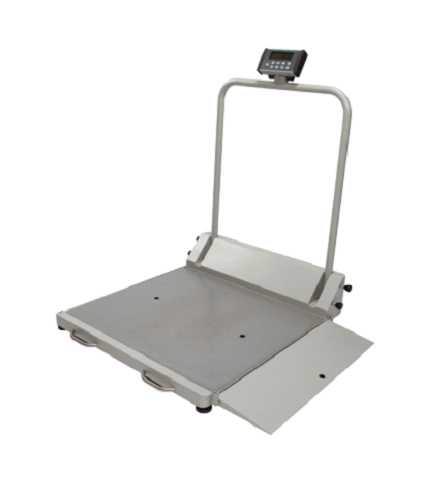

Digital Wheelchair Ramp Scales

These heavy duty digital scales feature wide platforms for

wheelchair or bariatric use. They also include wheels and the

2600KL has a folding ramp for easy portability and storage.

EMR Connectivity via USB. Large ¾” LCD display with 180°

swivel. Capacity: 1000 lb x 0.2 lb / 454 kg x 0.1 kg. Platform

sizes: 2500KL: 29 3/8” (w) x 28 ¼” (d) x 2 3/8” (h); 2600KL: 36”

(w) x 32 1/4” (d) x 2 1/2” (h). Functions include: LB / KG

Conversion, LB /KG Lock Out, Body Mass Index (BMI), Zero

Out / Tare, Hold / Release, Reweigh, Auto Zero, Auto Off. 2

year limited warranty. Powered by 120V adapter (incl.) or 6

AA batteries (not incl).

ItemNo Line Item Description

2500KL Digital Wheelchair Ramp Scale

2600KL Digital Wheelchair Folding Ramp Scale

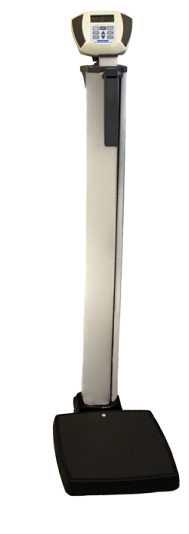

Elevate Digital Physician Scale

with Digital Height Rod

This heavy-duty scale features a built-in digital height

rod and has EMR Connectivity via Welch Allyn Vital

Signs® LXi, and Welch Allyn Connex® Vital Signs

monitors and Welch Allyn Connex® Integrated Wall

Systems. Capacity: 600 lb x 0.2 lb / 272 kg x 0.1 kg.

Platform Size: 14 1/4” (w) x 14 1/4” (d) x 2 5/8” (h).

Height rod measures: 24” - 88” / 61 cm - 223 cm. It

has a large 1” LCD, 350° Swivel Display. Powered by

120V adapter (incl) or 6 C-cell batteries (not incl). 2

Year Limited Warranty. Functions: LB / KG

Conversion, LB /KG Lock Out, Body Mass Index (BMI),

Zero Out / Tare, Hold / Release, Auto Zero, Auto Off

ItemNo Line Item Description

600KL Heavy Duty Scale with Digital Height Rod

ELEVATE-C Digital scale with Connectivity Kit for

Welch Allyn Connex monitors and

Integrated Wall Systems

ELEVATE-L Digital scale with Connectivity Kit for

Welch Allyn Vital Signs LXi monitors
