Viewers/Illuminators

Wolf X-Ray Corp.

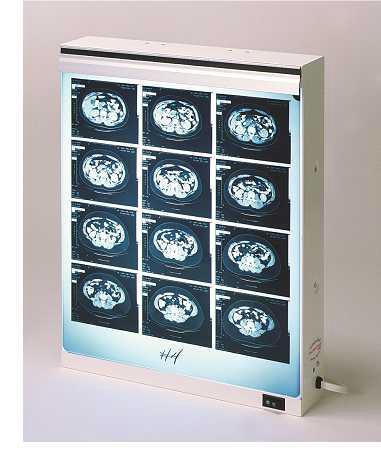

Econoline Illuminators

The most economical illuminator available,

The Econoline feature two 15 watt

fluorescent lamps and instant-on ballast to

assure flicker-free operation and uniform

light distribution. The Econoline's 3" depth

makes it easy to wall mount. The Econoline

comes with a baked on white finish, a

magic grip film retainer and an 8' line cord

with a three prong plug.

ItemNo Line Item Description

29601 Single, 14" X 17" viewing area, cabinet 14

1/8"W X 18 1/8"H

29602 2 in 1, 28" X 17" viewing area, cabinet 28

1/4"W X 18 1/8"H

29603 3 in 1, 42" X 17" viewing area, cabinet 42

3/8"W X 18 1/8"H

29604 4 in 1, 56"X 17" viewing area, cabinet 56

1/2"W X 18 1/8"H

Recessing Frame Kit

ItemNo Line Item Description

29701 Kit for 14" X 17" viewer

29702 Kit for 2 in 1 horizontal viewer

29703 Kit for 3 in 1 horizontal viewer

29704 Kit for 4 in 1 horizontal viewer

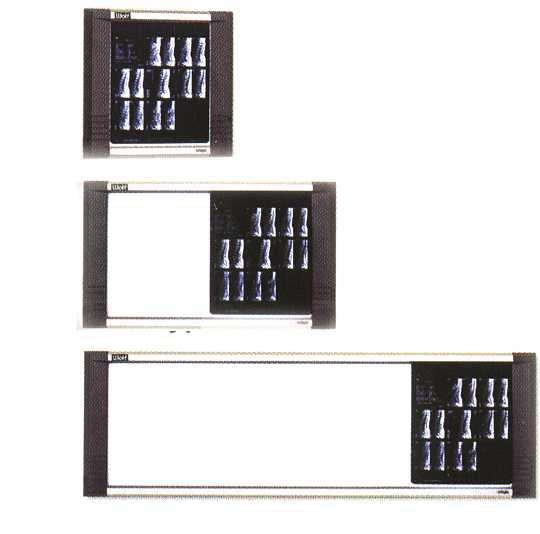

InSight Illuminator

The InSight Illuminator utilizes LCD

TV technology to bring you an x-

ray viewbox with a uniquely even

light distribution in a super thin

cabinet. Just 2 inches deep, it gives

you the look of a recessed unit

without cutting holes in your wall.

Available as a single unit (14 X 17"

viewing area), a double (28 X 17"

viewing area) and a four in one (56

X 17" viewing area). The InSight is

equipped with an auto switch

(activates the illuminator when a

film is inserted) and an on/off

switch.

ItemNo Line Item Description

27001 Single, 20 1/4"H X 21"L X 1 5/8"D

27002 Double, 20 1/4"H X 35"L X 1 5/8"D

27004 Four in one, 20 1/4"H X 63"L X 1 5/8"D

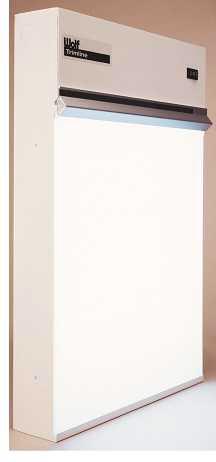

Trimline Series Illuminators

Trimline is the perfect illuminator for any office or

hospital. Trimlines come in your choice of lighting

intensities, you can choose from 2, 3, 4 or 6

(dimmable to 4) bulb lighting intensities per each

14" X 17" viewing section. All come with film

activated auto switches, roller grip film retainers

and Wolf's unique "EZ-Bar" which allows you to wall

mount your illuminator in minutes. At only 3-1/4"

deep Trimlines are unobtrusive when wall mounted

or can be ordered with a frame (sold separately) for

recessed, in the wall mounting. Trimlines are

available from a single unit up to a 6 over 6

configuration. Cluster switching is standard on

multiple banks over 2 over 2. ETL approved. Below

are the stock numbers for single units. For a 2

panel unit replace the last number (1) with 2, for 3

panels, 3 etc up to 6 for a 6 panel unit. Replace the

last 2 numbers with "11" for a one over one, "22" for

a two over two, etcetera up to a six over 6 ("66").

ItemNo Line Item Description

21401 Trimline (2 bulbs per section)

23401 Trimline III (3 bulbs per section)

29001 Trimline Plus Hi-Lo (6 bulbs per section

dimable to 4)

29401 Trimline Plus (4 bulbs per section)

21701 Recess Kit for a standard 14" X 17" viewer

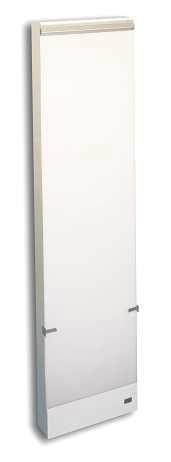

Trimline Spinal Illuminators

Super Illuminator features a full 14" X 36" or 14" X 51"

plexiglass viewing area, 3 lamp (30 watts each)

illumination, roller grip film retainer, and 8' line cord

with 3 prong plug, and a rocker switch. Wolf's EZ-Bar

is provided for easy wall mounting. Manufactured

from durable steel, the 36 and 51 are finished in a

white baked-on finish. Can be surfaced or recessed

mounted.

ItemNo Line Item Description

29280 Single 36, 14"W X 36"H viewing area,

cabinet 14"W X 42"H X 4"D

29281 Double 36, 28"W X 36"H viewing area,

cabinet 28"W X 42"H X 4"D

29282 Single 51, 14" X 51" viewing area, cabinet

14"W X 53 3/4"H X 4"D

29780 Recess framing kit for 29280

29781 Recess framing kit for 29281

29782 Recess framing kit for 29282
